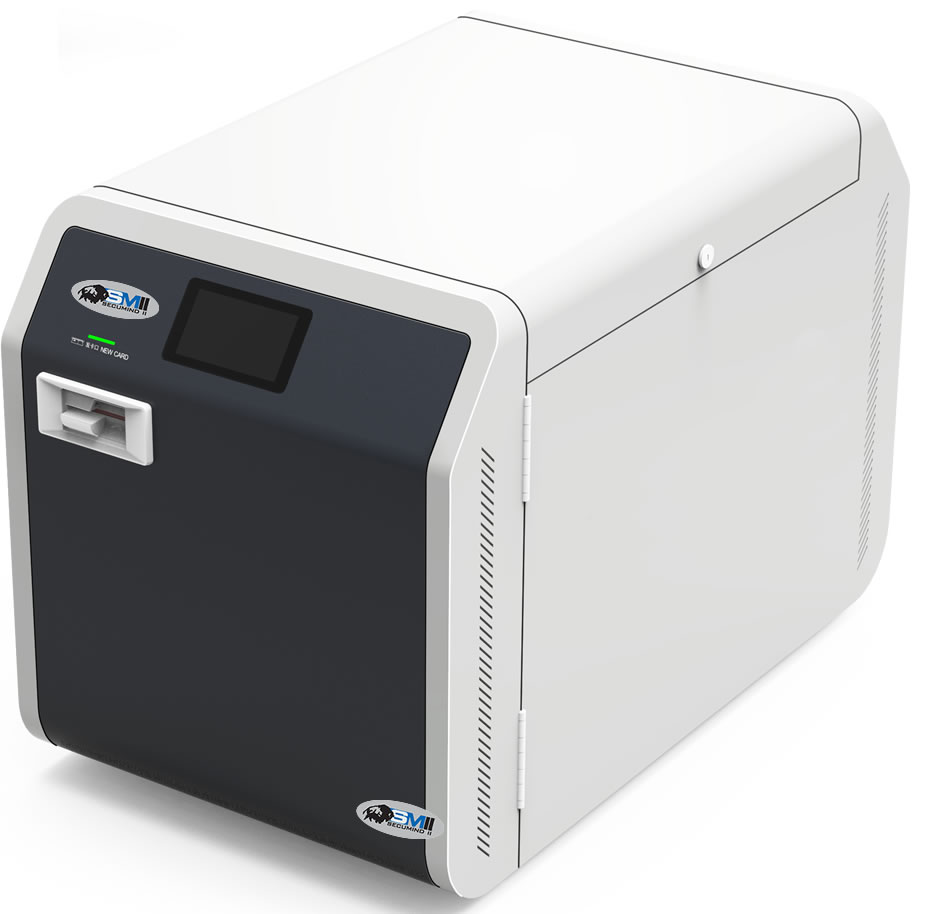

Secumind CX 6100 Retail Banking Card Issuance System
The CX6100 desktop banking card printer packs full secure banking card personalization functions in a compact design. Easy to deploy in bank offices and cubicles, and particularly designed for instant issuance of banking card at the branch level, the CX6100 integrates card embossing, indent printing, thermal printing in color, tipping, contact/contactless chip and magnetic stripe encoding in a single unit. It offers the flexibility to issue various types of banking card with wide card material and range compatibility. Issuance / re-issuance of highly secure branded credit & debit cards on the spot is now possible. Versatile functions with a small footprint, easy operation and maintenance, CX6100 is the ideal choice for banks and financial institutions worldwide.

Highlights:

• Small footprint with full functions in a compact cabinet
• EMV-compliant banking card personalization
• Speed up to 150 cards per hour
• Convenient front-facing operation
• 7 compartment input magazines, support 7 types of card layout
• Lockable input magazine, convenient plug-in usage
• Full-color and monochrome thermal printing on both card sides, edge-to-edge printing
• Embossing/Indent: one single drum with 150 characters, support front/rear and both sides embossing / indent printing
• Support golden, black or silver tipping, easy ribbon replacement in 5 seconds

Features

• Embossing / Indent: Single drum with 150 characters
• Front, rear or both sides of the card
• Indent Ribbon Color: black or white
• Contactless Encoding: Comply with ISO14443 Type A/B standard
• Contact Encoding: Comply with ISO7816 standard
• Magnetic Stripe Encoding: 3 tracks ISO 7811, HiCo & LoCo
• Input Magazine: 7-compartment input magazine, each with capacity of 100 cards
• Reject Card Bin: 1 reject bin with capacity of 20 cards
• Printing: Full-color and monochrome thermal printing
• One-sided (simplex) and two-sided (duplex). Edge to-edge printing
• Tipping Module: Black, gold or silver film options
• Interface: Ethernet
• Speed: 25~80s per card

• Working Temperature: 15~32℃
• Working Humidity: 5% to 95%, non-condensing
• Power Supply: AC 220~240V, 50/60Hz (Optional 110V)
• Dimensions: 780(L)×330(W)×480(H) mm
• Packing Dimensions: 940(L)×471(W)×610(H) mm
• Weight: 61 kg)
• Noise: ≤ 63 db
• Operating System: Windows7, English
